Graphite electrodes play a crucial role in the steelmaking industry, particularly in electric arc furnaces (EAF) and ladle refining furnaces (LRF). Among the various factors that determine the efficiency and durability of graphite electrodes, diameter is one of the most critical. The choice of electrode diame
ter directly affects furnace operation, energy consumption, and overall production costs. Understanding the relationship between electrode diameter and performance can help manufacturers and steelmakers optimize their processes for better results.
The Role of Graphite Electrodes in Steelmaking

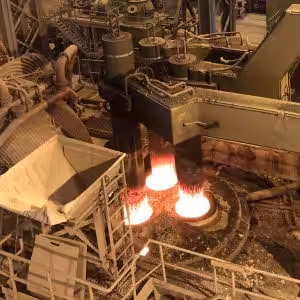

Graphite electrodes are essential components in electric steel production, acting as conductors of electricity to generate the high temperatures required for melting scrap metal. The intense heat and harsh working conditions demand electrodes with superior conductivity, mechanical strength, and thermal resistance. These characteristics vary based on the electrode’s diameter, composition, and quality, making the selection process highly significant.
How Electrode Diameter Influences Performance
1. Current Carrying Capacity
The diameter of a graphite electrode directly impacts its ability to conduct electric current. Larger-diameter electrodes can carry higher electrical currents, reducing the risk of overheating and premature breakage. This is particularly beneficial for high-power and ultra-high-power (UHP) electric arc furnaces, which require robust electrodes to handle the immense energy input.
2. Electrode Consumption Rate
Smaller-diameter electrodes tend to wear out faster due to increased resistance and higher consumption rates. In contrast, larger electrodes offer a longer service life, leading to fewer replacements and reduced downtime. This results in improved cost efficiency for steel producers, as electrode consumption is one of the significant expenses in steelmaking.
3. Arc Stability and Efficiency
Electrode diameter also affects the stability of the electric arc. A larger electrode provides a more stable arc, improving the efficiency of the melting process and reducing energy losses. Stable arc operation ensures uniform heat distribution, leading to consistent steel quality and lower operational costs.
4. Mechanical Strength and Breakage Resistance
Larger electrodes generally exhibit greater mechanical strength, reducing the likelihood of breakage under high-temperature and high-stress conditions. Smaller electrodes, on the other hand, may be more prone to cracking and early failure, leading to unplanned maintenance and production delays.
Choosing the Right Electrode Diameter
Selecting the appropriate graphite electrode diameter depends on several factors, including furnace size, power input, and production requirements. Common diameters range from 200mm (8 inches) to 700mm (28 inches) or more, with UHP electrodes typically requiring larger diameters for optimal performance. Manufacturers must consider their operational needs, balancing cost and efficiency when deciding on the best electrode specifications.
Future Trends in Graphite Electrode Technology
With the growing demand for electric steel production and advancements in furnace technology, graphite electrodes are evolving to meet new industry standards. Innovations in raw material processing and electrode design are helping improve conductivity, reduce consumption rates, and enhance durability. As sustainability and energy efficiency become key concerns, selecting the right electrode diameter will play an even more significant role in optimizing performance.
The diameter of graphite electrodes is a critical factor influencing their performance in electric arc furnaces. From current carrying capacity and electrode consumption rate to arc stability and mechanical strength, choosing the right diameter can significantly impact steelmaking efficiency and costs. As the industry continues to advance, understanding these factors will help manufacturers and steel producers make informed decisions to enhance productivity and competitiveness in the global market.
