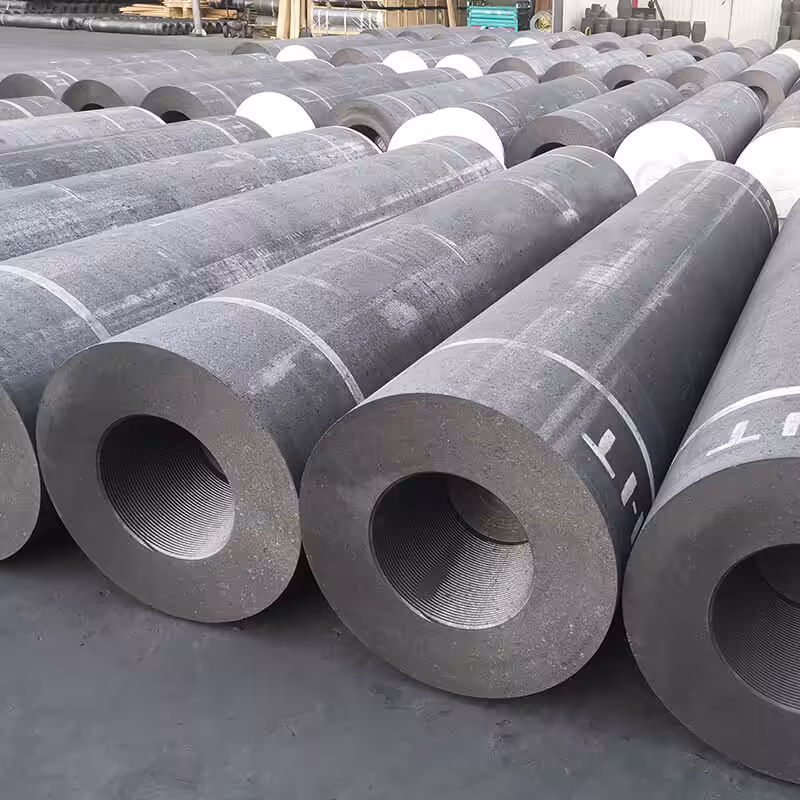

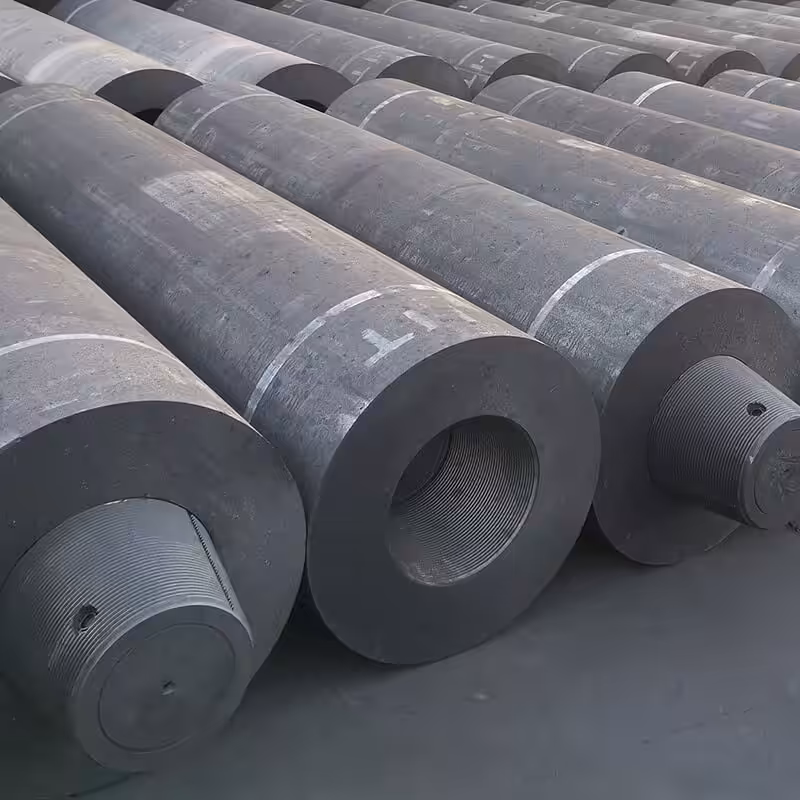

High Power Hp Graphite Electrode for Steel production
Electric arc furnace technology, dependent on High Power graphite electrodes, facilitates the recycling of scrap steel and metals, contributing to resource conservation
PRODUCTS CATEGORIES
PRODUCT DESCRIPTION
Features
- High mechanical strength, low electrical resistance.
- High bulk density,High-purity, strong chemical stability.
- Low power consumption.
- Relative high electric conductivity.
- High resistance to oxidation and thermal shock,long service life.
- Easy for processing, low material consumption.
Specification for BENHONG Graphite electrode
| Items | Unit | Nominal diameter(mm) | |||
| 200-400 | 450-500 | 550-700 | |||
| Specific resistance | Electrode | μΩ·m | 5.2-6.5 | 5.2-6.5 | 5.2-6.5 |
| Nipple | 3.5-4.5 | 3.5-4.5 | 3.2-4.3 | ||
| Transverse strength | Electrode | MPa | ≥11.0 | ≥11.0 | ≥10.0 |
| Nipple | ≥20.0 | ≥22.0 | ≥22.0 | ||
| Elastic modulus | Electrode | GPa | ≤12.0 | ≤12.0 | ≤12.0 |
| Nipple | ≤15.0 | ≤15.0 | ≤15.0 | ||
| Ash content | Electrode | % | ≤0.2 | ≤0.2 | ≤0.2 |
| Nipple | |||||
| Bulk density | Electrode | g/m³ | 1.68-1.73 | 1.68-1.73 | 1.68-1.72 |
| Nipple | 1.78-1.83 | 1.78-1.83 | 1.78-1.83 | ||
| C.T.E | Electrode | 10-6℃ | ≤2.0 | ≤2.0 | ≤2.0 |
| Nipple | ≤1.8 | ≤1.8 | ≤1.8 | ||

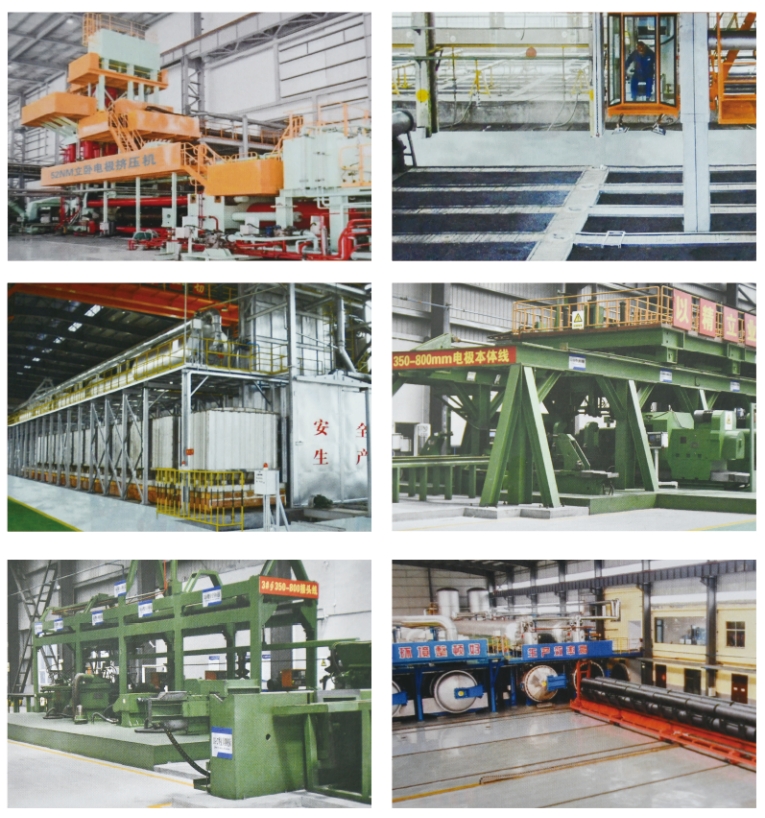

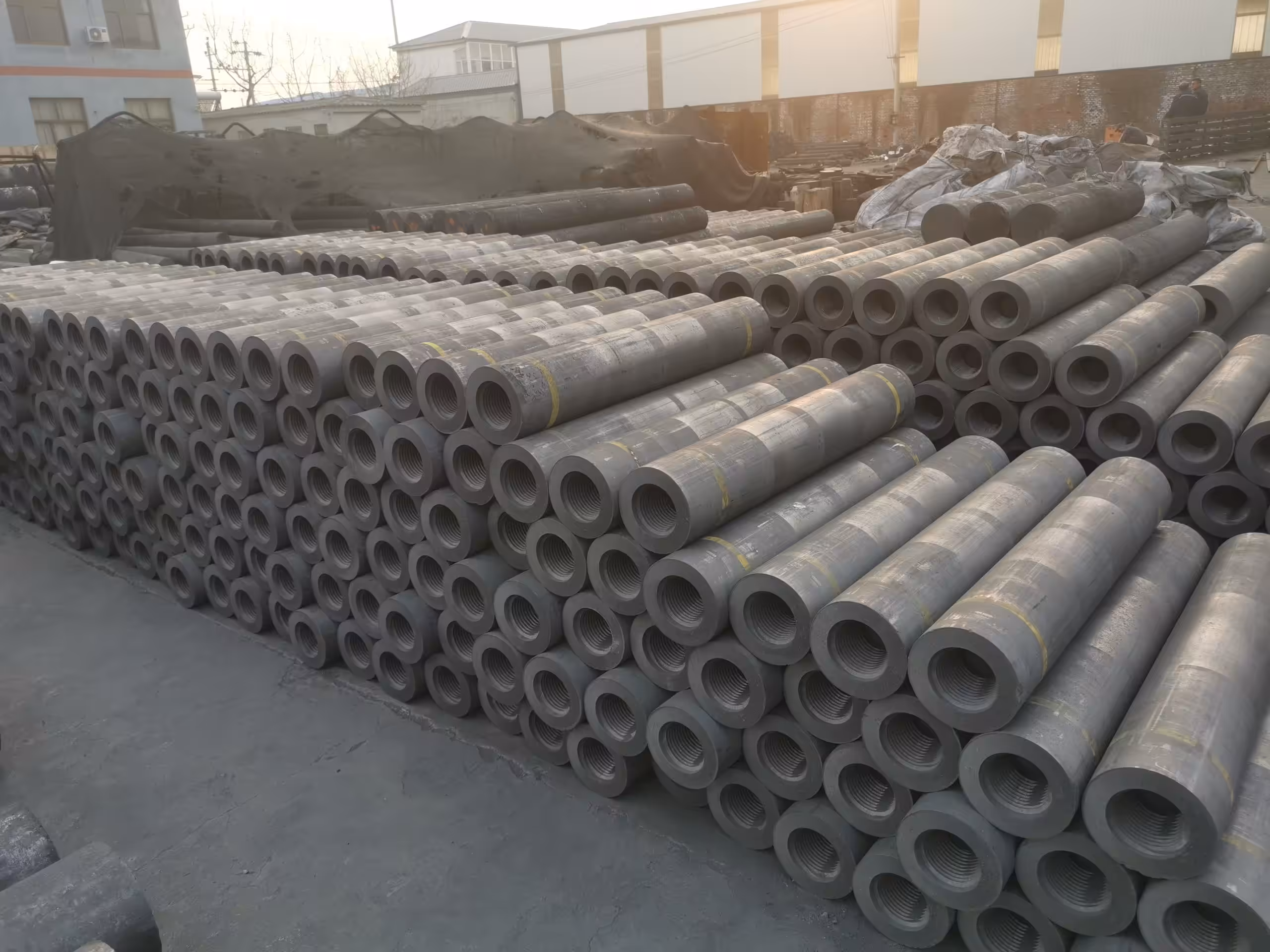

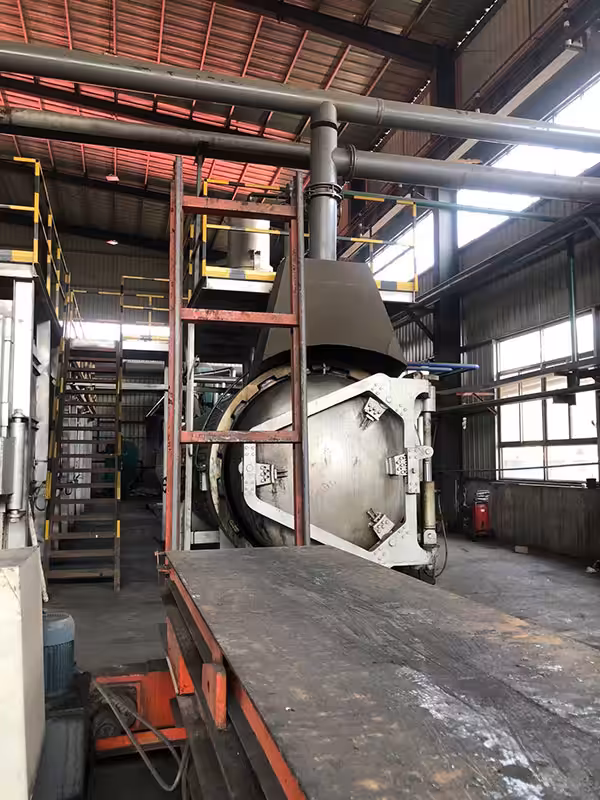

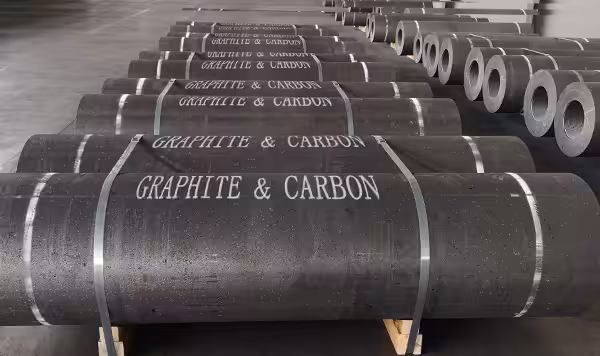

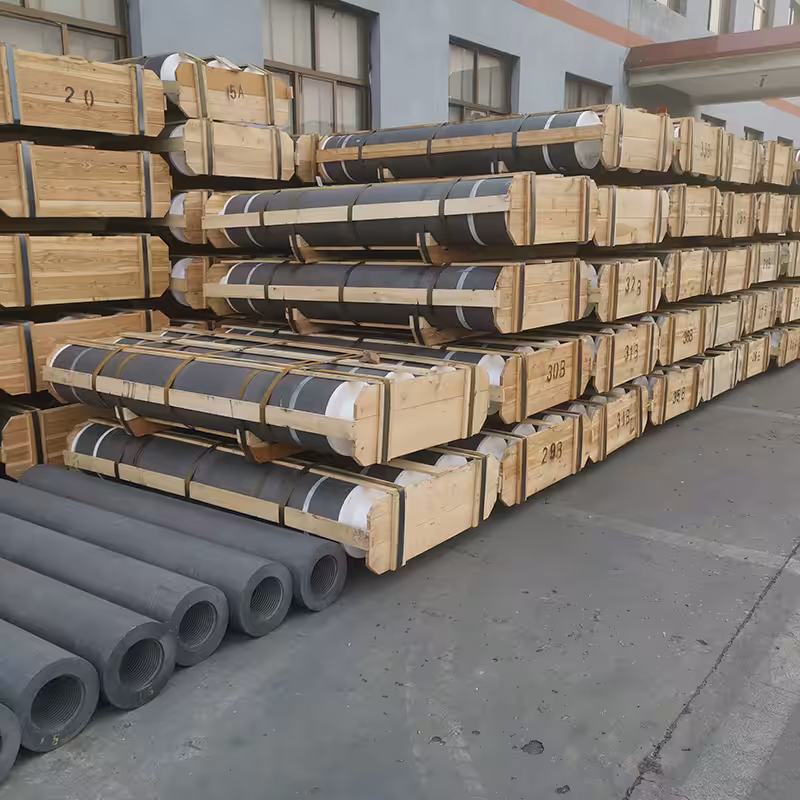

Production facilities

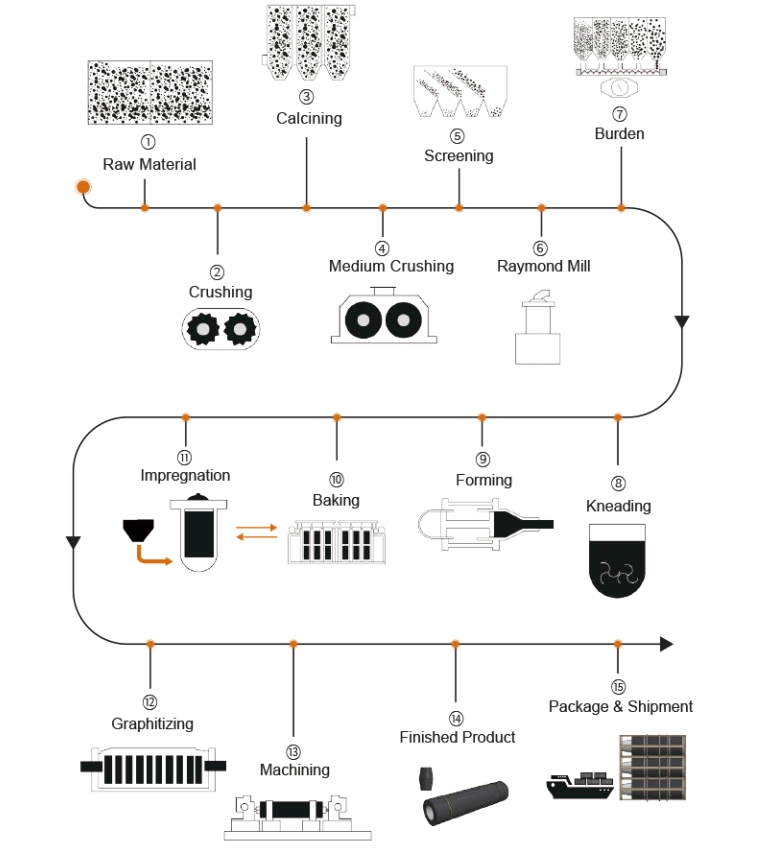

Production process
About us
1.30 years of production experience has convinced us that this is our careers, not just a business.
2.We have all the certificates needed in the field:ISO/SGS/MSDS.
3.Our team is honest, united and has a high service spirit.
4.We have establaished cooperation with Saudi Arabia, Iran,India, Turkey, Brazil, Russia and other countries.
5.Customer as the core of the complete after-sales service.
6.The repeat purchase rate exceedns 92%.
The services we provide
- Free consultation for installation.
- Whole-process after-sales follow-up.
